Finite-element mesh importer. More...

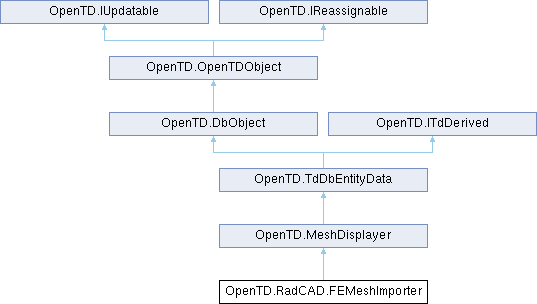

Inheritance diagram for OpenTD.RadCAD.FEMeshImporter:

Public Types
enum	ImporterFiletype { NASTRAN = 0 , FEMAP = 1 , ANSYSCDB = 2 , IDEAS = 3 , POINTWISE = 4 , TDDIRECT = 5 }

Public Member Functions
	FEMeshImporter ()
	Do not use.

	FEMeshImporter (ITdCommander TdProxy, string name, bool useCurrentUCS)

	FEMeshImporter (ITdCommander TdProxy, string handle)

void	ReadMeshDataFile (string filename, ImporterFiletype filetype, int inputModelLengthUnits=-999, bool loadProps=true, bool loadBoundaryConditions=true)
	Read an external mesh data file to create a TD FEM. Set inputModelLengthUnits to an integer corresponding to the Units.ModelLength enum. If left at the default value of -999, WorkingUnits.ModelLength will be assumed. inputModelLengthUnits functions normally for NASTRAN and FEMAP. inputModelLengthUnits has no effect on Ansys CDB or Ideas - ensure source file units match drawing units. Versions 6.1 - 6.3 used ReadNastranFile() instead.

void	SetMesh (FEModel.FEMesh mesh)

override void	Update ()
	Updates the TD entity with the latest client data.

override void	UpdateFromTD ()
	Updates the client-side instance with the latest data from the TD entity.

void	TransformBy (Matrix3d x)

void	SetThermalStressAssociation (string stress, string thermal)
	Set post processing data mapper stress group to thermal group association.

void	SetThermalStressGradAssociation (string stress, string thermal)
	Set post processing data mapper stress group to thermal gradient group association.

List< StressThermalGroupAssociation >	GetThermalStressAssociations ()
	Get list of post processing data mapper stress group to thermal group associations.

void	SetFrom (TdDbEntityData x)

void	SetFrom (DbObject x)

void	SetFrom (OpenTDObject x)

override string	ToString ()

override void	CreateIn (ThermalDesktop td)
	Creates the TD entity in the specified TD instance.

override bool	Equals (object obj)

override int	GetHashCode ()

void	UpdateIn (ThermalDesktop td)
	Updates the TD entity corresponding to this object in the specified TD instance, if possible.

Static Public Member Functions
static bool	operator== (DbObject first, DbObject second)

static bool	operator!= (DbObject first, DbObject second)

Protected Member Functions
string	ToString (string Submodel, string Id, string Comment)

string	ToString (string Submodel, int Id, string Comment)

Protected Attributes
ITdCommander	TdProxy

Properties
Matrix3d	LocalToWorldTransformation `[get]`

Matrix3d	BaseTrans `[get, set]`

MeshDisplayerGraphicsMode	PostProcessingDisplayMode `[get, set]`

MeshDisplayerGraphicsMode	ModelViewDisplayMode `[get, set]`

string	Label `[get, set]`

Dictionary< string, StressThermalGroupAssociation >	StressThermalGroupMap `[get, set]`
	Do not use.

string	Layer `[get, set]`

int	ColorIndex `[get, set]`
	Specifies a color. See the AutoCAD Layer Properties Manager for valid values.

string	Handle `[get, set]`

string	TypeName `[get, set]`

Detailed Description

Finite-element mesh importer.

See also: OpenTD.ThermalDesktop

Member Enumeration Documentation

◆ ImporterFiletype

enum OpenTD.RadCAD.FEMeshImporter.ImporterFiletype

Enumerator
NASTRAN
FEMAP
ANSYSCDB
IDEAS
POINTWISE
TDDIRECT

Constructor & Destructor Documentation

◆ FEMeshImporter() [1/3]

OpenTD.RadCAD.FEMeshImporter.FEMeshImporter ( )

inline

Do not use.

◆ FEMeshImporter() [2/3]

OpenTD.RadCAD.FEMeshImporter.FEMeshImporter	(	ITdCommander	TdProxy,
		string	name,
		bool	useCurrentUCS )

inline

◆ FEMeshImporter() [3/3]

OpenTD.RadCAD.FEMeshImporter.FEMeshImporter	(	ITdCommander	TdProxy,
		string	handle )

inline

Member Function Documentation

◆ CreateIn()

override void OpenTD.DbObject.CreateIn ( ThermalDesktop td )

inlineinherited

Creates the TD entity in the specified TD instance.

Implements OpenTD.IReassignable.

◆ Equals()

override bool OpenTD.DbObject.Equals ( object obj )

inlineinherited

◆ GetHashCode()

override int OpenTD.DbObject.GetHashCode ( )

inlineinherited

◆ GetThermalStressAssociations()

List< StressThermalGroupAssociation > OpenTD.MeshDisplayer.GetThermalStressAssociations ( )

inlineinherited

Get list of post processing data mapper stress group to thermal group associations.

Returns

◆ operator!=()

static bool OpenTD.DbObject.operator!=	(	DbObject	first,
		DbObject	second )

inlinestaticinherited

◆ operator==()

static bool OpenTD.DbObject.operator==	(	DbObject	first,
		DbObject	second )

inlinestaticinherited

◆ ReadMeshDataFile()

void OpenTD.RadCAD.FEMeshImporter.ReadMeshDataFile	(	string	filename,
		ImporterFiletype	filetype,
		int	inputModelLengthUnits = -999,
		bool	loadProps = true,
		bool	loadBoundaryConditions = true )

inline

Read an external mesh data file to create a TD FEM. Set inputModelLengthUnits to an integer corresponding to the Units.ModelLength enum. If left at the default value of -999, WorkingUnits.ModelLength will be assumed. inputModelLengthUnits functions normally for NASTRAN and FEMAP. inputModelLengthUnits has no effect on Ansys CDB or Ideas - ensure source file units match drawing units. Versions 6.1 - 6.3 used ReadNastranFile() instead.

Parameters

filename
inputModelLengthUnits
loadProps
loadBoundaryConditions

See also: OpenTD.UnitsData.ModelLength, OpenTD.Units.WorkingUnits

◆ SetFrom() [1/3]

void OpenTD.DbObject.SetFrom ( DbObject x )

inlineinherited

◆ SetFrom() [2/3]

void OpenTD.OpenTDObject.SetFrom ( OpenTDObject x )

inlineinherited

◆ SetFrom() [3/3]

void OpenTD.TdDbEntityData.SetFrom ( TdDbEntityData x )

inlineinherited

◆ SetMesh()

void OpenTD.RadCAD.FEMeshImporter.SetMesh ( FEModel.FEMesh mesh )

inline

◆ SetThermalStressAssociation()

void OpenTD.MeshDisplayer.SetThermalStressAssociation	(	string	stress,
		string	thermal )

inlineinherited

Set post processing data mapper stress group to thermal group association.

Parameters

stress
thermal

◆ SetThermalStressGradAssociation()

void OpenTD.MeshDisplayer.SetThermalStressGradAssociation	(	string	stress,
		string	thermal )

inlineinherited

Set post processing data mapper stress group to thermal gradient group association.

Parameters

stress
thermal

◆ ToString() [1/3]

override string OpenTD.TdDbEntityData.ToString ( )

inlineinherited

◆ ToString() [2/3]

string OpenTD.TdDbEntityData.ToString	(	string	Submodel,
		int	Id,
		string	Comment )

inlineprotectedinherited

◆ ToString() [3/3]

string OpenTD.TdDbEntityData.ToString	(	string	Submodel,
		string	Id,
		string	Comment )

inlineprotectedinherited

◆ TransformBy()

void OpenTD.MeshDisplayer.TransformBy ( Matrix3d x )

inlineinherited

◆ Update()

override void OpenTD.RadCAD.FEMeshImporter.Update ( )

inline

Updates the TD entity with the latest client data.

Implements OpenTD.IUpdatable.

◆ UpdateFromTD()

override void OpenTD.RadCAD.FEMeshImporter.UpdateFromTD ( )

inline

Updates the client-side instance with the latest data from the TD entity.

Implements OpenTD.IUpdatable.

◆ UpdateIn()

void OpenTD.OpenTDObject.UpdateIn ( ThermalDesktop td )

inlineinherited

Updates the TD entity corresponding to this object in the specified TD instance, if possible.

Implements OpenTD.IReassignable.

Member Data Documentation

◆ TdProxy

ITdCommander OpenTD.OpenTDObject.TdProxy

protectedinherited

Property Documentation

◆ BaseTrans

Matrix3d OpenTD.MeshDisplayer.BaseTrans

getsetinherited

◆ ColorIndex

int OpenTD.TdDbEntityData.ColorIndex

getsetinherited

Specifies a color. See the AutoCAD Layer Properties Manager for valid values.

◆ Handle

string OpenTD.DbObject.Handle

getsetinherited

◆ Label

string OpenTD.MeshDisplayer.Label

getsetinherited

◆ Layer

string OpenTD.TdDbEntityData.Layer

getsetinherited

◆ LocalToWorldTransformation

Matrix3d OpenTD.MeshDisplayer.LocalToWorldTransformation

getinherited

◆ ModelViewDisplayMode

MeshDisplayerGraphicsMode OpenTD.MeshDisplayer.ModelViewDisplayMode

getsetinherited

◆ PostProcessingDisplayMode

MeshDisplayerGraphicsMode OpenTD.MeshDisplayer.PostProcessingDisplayMode

getsetinherited

◆ StressThermalGroupMap

Dictionary<string, StressThermalGroupAssociation> OpenTD.MeshDisplayer.StressThermalGroupMap

getsetinherited

Do not use.

◆ TypeName

string OpenTD.DbObject.TypeName

getsetinherited

The documentation for this class was generated from the following file:
