A DerivedDataArray that generate values using a formula that references 0 or more arrays from its InputCollection. More...

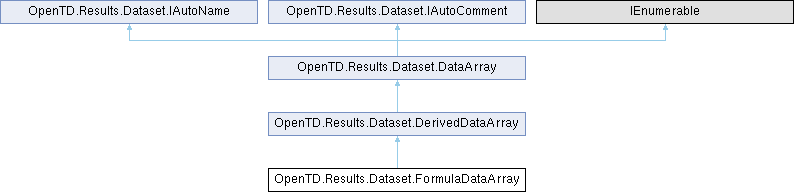

Inheritance diagram for OpenTD.Results.Dataset.FormulaDataArray:

Public Member Functions
	FormulaDataArray (DataArrayCollection inputCollection)

	FormulaDataArray ()

override List< double >	GetValues (UnitsData units)
	Gets the data in the units provided.

List< double >	GetValues ()
	Gets the data in the current WorkingUnits.

virtual void	SetValues (IEnumerable< double > values, DataSubtype subtype=null, UnitsData units=null, ItemIdentifier item=null)

override string	ToString ()

IEnumerator< double >	GetEnumerator ()

Static Public Member Functions
static implicit	operator List< double > (DataArray x)

static implicit	operator List< DataArray > (DataArray x)

Protected Member Functions
override string	GetSelfSuggestedName ()

override void	SetDerivedData ()
	For setting ValuesSI, any other derived data.

override void	CheckData ()

virtual string	GetSelfSuggestedComment ()

Protected Attributes
List< double >	ValuesSI

Properties
string	Formula `[get, set]`
	The formula to generate array values. Use "X0" to refer to the first array in the InputCollection, "X1" to refer to the second, etc. For formula syntax, see .NET docs for DataColumn.Expression. (https://docs.microsoft.com/en-us/dotnet/api/system.data.datacolumn.expression?view=netcore-3.1)

UnitsData	FormulaUnits `[get, set]`
	The units the forumla is written in, if applicable. The FormulaDataArray will automatically convert the InputCollection to these units before applying the formula. This is necessary for a formula like "X0 + 30", for example, when X0 is a temperature and 30 is in deg C. Defaults to the WorkingUnits.

override DataSubtype	Subtype `[get, set]`
	The subtype of the formula result. Defaults to dimensionless, but can be set by the user.

int	OutputCount `[get, set]`
	The number of items contained in the output array. This defaults to the maximum Count of any input array (if there are input arrays) or to 1 if there are no input arrays. This value can be set by the user.

DataArrayCollection	InputCollection `[get, set]`
	The collection of DataArrays operated upon to derive data.

bool	IgnoreNaNInCalculations `[get, set]`

override IDataset	SourceDataset `[get, set]`
	The source Dataset for the InputCollection.

override ItemIdentifier	SourceItem `[get, set]`
	The SourceItem for the InputCollection.

override int	Count `[get]`

override double	this[int index] `[get, set]`

DataItemIdentifier	SourceDataItem `[get]`
	Combines the SourceItem and Subtype. If either are null, this is null.

UnitsData.UnitsType	Dimension `[get]`
	The physical dimension of this data.

bool	IsInteger `[get]`
	Returns true if the subtype of this data represents integer data.

AutoNamer	AutoNamer `[get, set]`

string	Name `[get, set]`

string	InternalSuggestedName `[get, set]`

AutoCommenter	AutoCommenter `[get, set]`

string	Comment `[get, set]`

string	InternalSuggestedComment `[get, set]`

Detailed Description

A DerivedDataArray that generate values using a formula that references 0 or more arrays from its InputCollection.

Constructor & Destructor Documentation

◆ FormulaDataArray() [1/2]

OpenTD.Results.Dataset.FormulaDataArray.FormulaDataArray ( DataArrayCollection inputCollection )

inline

◆ FormulaDataArray() [2/2]

OpenTD.Results.Dataset.FormulaDataArray.FormulaDataArray ( )

inline

Member Function Documentation

◆ CheckData()

override void OpenTD.Results.Dataset.FormulaDataArray.CheckData ( )

inlineprotectedvirtual

Reimplemented from OpenTD.Results.Dataset.DerivedDataArray.

◆ GetEnumerator()

IEnumerator< double > OpenTD.Results.Dataset.DataArray.GetEnumerator ( )

inlineinherited

◆ GetSelfSuggestedComment()

virtual string OpenTD.Results.Dataset.DataArray.GetSelfSuggestedComment ( )

inlineprotectedvirtualinherited

◆ GetSelfSuggestedName()

override string OpenTD.Results.Dataset.FormulaDataArray.GetSelfSuggestedName ( )

inlineprotectedvirtual

Reimplemented from OpenTD.Results.Dataset.DerivedDataArray.

◆ GetValues() [1/2]

List< double > OpenTD.Results.Dataset.DataArray.GetValues ( )

inlineinherited

Gets the data in the current WorkingUnits.

Returns: List<System.Double>.

See also: OpenTD.Units.WorkingUnits

◆ GetValues() [2/2]

override List< double > OpenTD.Results.Dataset.DerivedDataArray.GetValues ( UnitsData units )

inlinevirtualinherited

Gets the data in the units provided.

Parameters

units The units to return the data in.

Returns: List<System.Double>.

Reimplemented from OpenTD.Results.Dataset.DataArray.

Reimplemented in OpenTD.Results.Dataset.SelectOneDataArray.

◆ operator List< DataArray >()

static implicit OpenTD.Results.Dataset.DataArray.operator List< DataArray > ( DataArray x )

inlinestaticinherited

◆ operator List< double >()

static implicit OpenTD.Results.Dataset.DataArray.operator List< double > ( DataArray x )

inlinestaticinherited

◆ SetDerivedData()

override void OpenTD.Results.Dataset.FormulaDataArray.SetDerivedData ( )

inlineprotectedvirtual

For setting ValuesSI, any other derived data.

Reimplemented from OpenTD.Results.Dataset.DerivedDataArray.

◆ SetValues()

virtual void OpenTD.Results.Dataset.DataArray.SetValues	(	IEnumerable< double >	values,
		DataSubtype	subtype = null,
		UnitsData	units = null,
		ItemIdentifier	item = null )

inlinevirtualinherited

◆ ToString()

override string OpenTD.Results.Dataset.DataArray.ToString ( )

inlineinherited

Member Data Documentation

◆ ValuesSI

List<double> OpenTD.Results.Dataset.DataArray.ValuesSI

protectedinherited

Property Documentation

◆ AutoCommenter

AutoCommenter OpenTD.Results.Dataset.DataArray.AutoCommenter

getsetprotectedinherited

◆ AutoNamer

AutoNamer OpenTD.Results.Dataset.DataArray.AutoNamer

getsetprotectedinherited

◆ Comment

string OpenTD.Results.Dataset.DataArray.Comment

getsetinherited

Implements OpenTD.Results.Dataset.IAutoComment.

◆ Count

override int OpenTD.Results.Dataset.DerivedDataArray.Count

getinherited

◆ Dimension

UnitsData.UnitsType OpenTD.Results.Dataset.DataArray.Dimension

getinherited

The physical dimension of this data.

◆ Formula

string OpenTD.Results.Dataset.FormulaDataArray.Formula

getset

The formula to generate array values. Use "X0" to refer to the first array in the InputCollection, "X1" to refer to the second, etc. For formula syntax, see .NET docs for DataColumn.Expression. (https://docs.microsoft.com/en-us/dotnet/api/system.data.datacolumn.expression?view=netcore-3.1)

◆ FormulaUnits

UnitsData OpenTD.Results.Dataset.FormulaDataArray.FormulaUnits

getset

The units the forumla is written in, if applicable. The FormulaDataArray will automatically convert the InputCollection to these units before applying the formula. This is necessary for a formula like "X0 + 30", for example, when X0 is a temperature and 30 is in deg C. Defaults to the WorkingUnits.

◆ IgnoreNaNInCalculations

bool OpenTD.Results.Dataset.DerivedDataArray.IgnoreNaNInCalculations

getsetinherited

◆ InputCollection

DataArrayCollection OpenTD.Results.Dataset.DerivedDataArray.InputCollection

getsetinherited

The collection of DataArrays operated upon to derive data.

The input collection.

◆ InternalSuggestedComment

string OpenTD.Results.Dataset.DataArray.InternalSuggestedComment

getsetinherited

Implements OpenTD.Results.Dataset.IAutoComment.

◆ InternalSuggestedName

string OpenTD.Results.Dataset.DataArray.InternalSuggestedName

getsetinherited

Implements OpenTD.Results.Dataset.IAutoName.

◆ IsInteger

bool OpenTD.Results.Dataset.DataArray.IsInteger

getinherited

Returns true if the subtype of this data represents integer data.

◆ Name

string OpenTD.Results.Dataset.DataArray.Name

getsetinherited

Implements OpenTD.Results.Dataset.IAutoName.

◆ OutputCount

int OpenTD.Results.Dataset.FormulaDataArray.OutputCount

getset

The number of items contained in the output array. This defaults to the maximum Count of any input array (if there are input arrays) or to 1 if there are no input arrays. This value can be set by the user.

◆ SourceDataItem

DataItemIdentifier OpenTD.Results.Dataset.DataArray.SourceDataItem

getinherited

Combines the SourceItem and Subtype. If either are null, this is null.

◆ SourceDataset

override IDataset OpenTD.Results.Dataset.DerivedDataArray.SourceDataset

getsetinherited

The source Dataset for the InputCollection.

The source dataset.

Exceptions

OpenTDException Cannot set DerivedDataArray.SourceDataset directly. It will be derived from InputArrays.

◆ SourceItem

override ItemIdentifier OpenTD.Results.Dataset.DerivedDataArray.SourceItem

getsetinherited

The SourceItem for the InputCollection.

The source item.

Exceptions

OpenTDException Cannot set DerivedDataArray.SourceItem directly. It will be derived from InputArrays.

◆ Subtype

override DataSubtype OpenTD.Results.Dataset.FormulaDataArray.Subtype

getset

The subtype of the formula result. Defaults to dimensionless, but can be set by the user.

◆ this[int index]

override double OpenTD.Results.Dataset.DerivedDataArray.this[int index]

getsetinherited

The documentation for this class was generated from the following file:

C:/Users/mgarrett/source/repos/BuildsTdSuite/builds/TDDEV_ALPHA/buildXX/OpenTD.Results/Dataset/FormulaDataArray.cs
