AlwaysAfterCond
Last update: 17.07.2025Returns true while the input property has never been false after a condition becomes true.

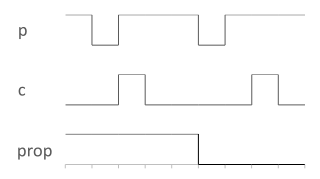

The following figure shows the output prop for the inputs p and c:
Interface
| Name | Kind | Type | Comment |
|---|---|---|---|
| p | I | bool | Input property |
| c | I | bool | Condition |
| prop | O | bool | Output property |
Constraint: The ratio period / timeSample must be greater than 2.
Parent topic:Check
