ImpliesN
Last update: 17.07.2025Returns the value of q during n cycles starting when p is true, otherwise true.

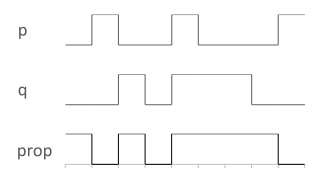

The following figure shows the output prop for the input p, q and 3 cycles:
Interface
| Name | Kind | Type | Comment |
|---|---|---|---|
| p | I | bool | First input property |
| q | I | bool | Second input property |
| n | I | unsigned | Number of cycles |
| prop | O | bool | Value of the property |
Constraint: The ratio period / timeSample must be greater than 2.
