Find the area under a curve

Calculate the area under a set of temperature-dependent stress-strain curves with numpy and scipy, and determine how the toughness and energy stored in the material up to the yield point varies with temperature.

Connect to Granta MI

Create a session, and specify a database and table.

from GRANTA_MIScriptingToolkit import granta as mpy

mi = mpy.connect("http://my.server.name/mi_servicelayer", autologon=True)
training_db = mi.get_db('MI Training')
training_db.unit_system = 'SI (Consistent)'
design_data = training_db.get_table('Design Data')

Specify the record you want to export using a lookup value (requires MI Scripting Toolkit 2.3 or later).

record = design_data.get_record_by_lookup_value(attribute_name='Common Name', lookup_value='250 Grade Maraging')

Get the attribute data you need from the record. (Yield Stress and Tensile Modulus are needed to calculate the yield point at each temperature.)

stress_strain = record.attributes['Tensile Stress/Strain, L']
yield_stress = record.attributes['Tens. Yield Stress (L-dir) with Temp.']
youngs_modulus = record.attributes['Tensile Modulus (L-dir) with Temp.']

Use a DataFrame to prepare the data

Build a DataFrame for each functional attribute

MI Scripting Toolkit's list-of-lists format for functional data can be loaded directly into a DataFrame, as long as you separate the datum into the first list item (the column headers) and the subsequent list items (the datapoints).

import pandas as pd

def functional_to_dataframe(attr):
    headers = attr.value[0]
    func_data = attr.value[1:]
    df = pd.DataFrame(func_data, columns=headers)
    return df

df_stress_strain = functional_to_dataframe(stress_strain)
df_yield_stress = functional_to_dataframe(yield_stress)
df_youngs_modulus = functional_to_dataframe(youngs_modulus)
df_stress_strain.head()

Refine the data

Define a function that takes a DataFrame and performs the following transformations as needed:

• Removes columns that aren't required, including the duplicated y-axis column

• Renames the x and y columns

• Copies columns

def clean_dataframe(df, y_name, x_name, columns_to_drop=None, columns_to_keep=None):
    if not columns_to_drop:
        columns_to_drop = []
    if not columns_to_keep:
        columns_to_keep = []
    new_df = df.drop(columns=[f'Y max ({y_name})']+[f'Y min ({y_name})']+columns_to_drop)
    new_df['y'] = df[[f'Y max ({y_name})', f'Y min ({y_name})']].mean(axis=1)
    new_df = new_df.rename(columns={x_name: 'x'})
    new_df[columns_to_keep] = df[columns_to_keep]
    return new_df

Use this function to create 'clean' versions of all three DataFrames.

df_stress_strain_clean = clean_dataframe(df=df_stress_strain,
                                         y_name='Tensile Stress/Strain, L [Pa]',
                                         x_name='Strain [strain]',
                                         columns_to_drop=['Y max (Tensile Stress/Strain, L [Pa])',
                                                          'Time [s]',
                                                          'Estimated point?',
                                                          'Other []',
                                                          'Stress/Strain Curve Type []'],
                                         columns_to_keep=['Temperature [°C]'])
df_stress_strain_clean = df_stress_strain_clean.rename(columns={'Temperature [°C]': 'Temperature'})
df_stress_strain_clean.head()

df_yield_stress_clean = clean_dataframe(df=df_yield_stress,
                                        y_name='Tens. Yield Stress (L-dir) with Temp. [Pa]',
                                        x_name='Temperature [°C]',
                                        columns_to_drop=['Y max (Tens. Yield Stress (L-dir) with Temp. [Pa])',
                                                         'Time [s]',
                                                         'Estimated point?',
                                                         'Other []'])
df_yield_stress_clean.head()

df_youngs_modulus_clean = clean_dataframe(df=df_youngs_modulus,
                                          y_name='Tensile Modulus (L-dir) with Temp. [Pa]',
                                          x_name='Temperature [°C]',
                                          columns_to_drop=['Y max (Tensile Modulus (L-dir) with Temp. [Pa])',
                                                           'Time [s]',
                                                           'Estimated point?',
                                                           'Other []'])
df_youngs_modulus_clean.head()

Calculate the area under the curves

Calculate the yield strain for each temperature

We need to integrate from x = 0 to the yield strain value. To calculate the yield strain, we require the exact Young's modulus and Yield stress at each temperature.

Our data may not have a value at that temperature, so use the interp1d function to interpolate between datapoints.

from scipy.interpolate import interp1d

modulus_x = df_youngs_modulus_clean.x
modulus_y = df_youngs_modulus_clean.y
f_modulus = interp1d(modulus_x, modulus_y, kind='cubic')

yield_x = df_yield_stress_clean.x
yield_y = df_yield_stress_clean.y
f_yield = interp1d(yield_x, yield_y, kind='cubic')

Define a function, get_yield_strain_at(), to calculate the yield strain from the interpolated values of Young's modulus and Yield stress. Assume an offset strain value of 0.02%.

OFFSET_STRAIN = 0.0002

def get_yield_strain_at(temp):
    modulus = f_modulus(temp)
    yield_stress = f_yield(temp)
    yield_strain = yield_stress / modulus + OFFSET_STRAIN
    return yield_strain

Re-sample the stress-strain curve up to the yield strain point

Define a function to generate a re-sampled set of x-y points for the stress-strain curve, up to the yield strain value.

Use get_yield_strain_at() to calculate the x limit of the resampling, then create a new set of linearly-spaced x values up to this limit. Then use interp1d to calculate the corresponding set of y values.

import numpy as np

def resample_stress_strain(x, y, x_t):
    yield_strain = get_yield_strain_at(x_t)
    xnew = np.linspace(0, yield_strain, num=101, endpoint=True)
    f = interp1d(x, y, kind='cubic')
    ynew = f(xnew)
    return xnew, ynew

Perform the numerical integration

Define a function that uses Simpson's rule to perform the numerical integration on the resampled data points.

from scipy.integrate import simpson

def area_under_stress_strain_curve(temp, df_single_temp):
    x = df_single_temp.x
    y = df_single_temp.y
    xnew, ynew = resample_stress_strain(x, y, temp)
    result = simpson(y=ynew, x=xnew)
    return result

Run the calculations for each stress-strain curve

Use the DataFrame.groupby() function to generate sub-DataFrames for each unique temperature value. Iterate over these, storing the results of area_under_stress_strain_curve() in a dict.

def_groupedby_temperature = df_stress_strain_clean.groupby('Temperature')
results = [{'x': t, 'y': area_under_stress_strain_curve(t, df)} for t, df in def_groupedby_temperature]
df_results = pd.DataFrame(results)
df_results

Plot the results

This code snippet is optional, and is included to increase the size of all plots generated in this notebook.

import matplotlib.pyplot as plt
plt.rcParams['figure.dpi'] = 125

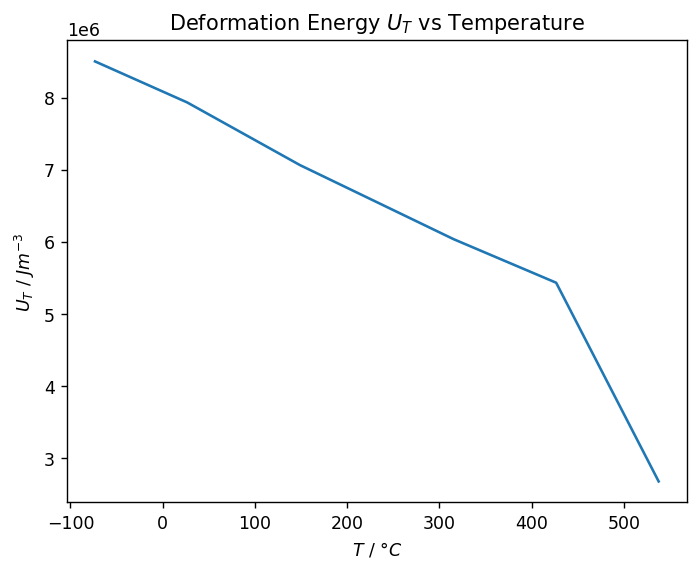

Plot Deformation Energy vs Temperature

Plot the accumulated energy (or Deformation Energy $U_T$) vs Temperature. As temperature increases, the deformation energy stored up to the yield point is reduced.

from matplotlib import pyplot as plt

energy_per_volume_unit = 'Jm^{{-3}}'
temperature_unit = '°C'
x_label = rf'$T$ / ${temperature_unit}$'
y_label = rf'$U_T$ / ${energy_per_volume_unit}$'

fig, ax = plt.subplots()
ax.plot(df_results['x'], df_results['y'])
ax.set_ylabel(y_label)
ax.set_xlabel(x_label)
_ = ax.set_title('Deformation Energy $U_T$ vs Temperature')

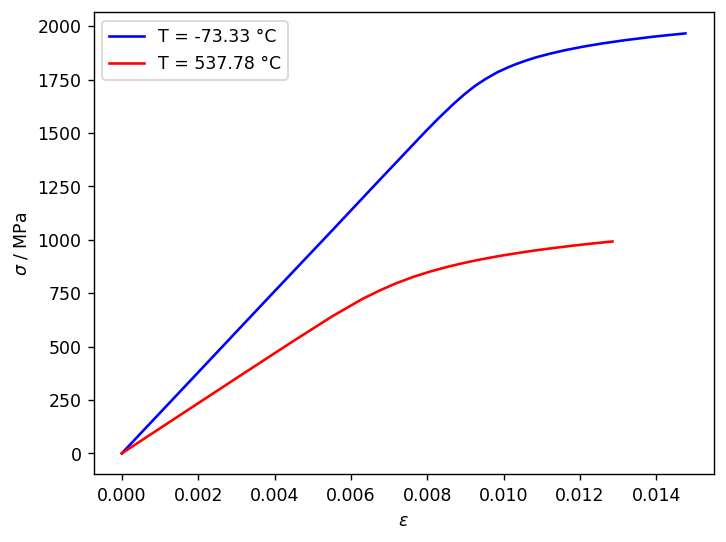

Compare Deformation Energy at temperature extrema

The area under the high- and low-temperature Stress-Strain curves can be shown graphically, providing a more visual comparison.

Create a basic Stress-Strain plot at both temperatures, dividing the plotted y values by $10^6$ and changing the y-axis units to MPa. Add the legend manually.

# Low temperature
t_low = df_stress_strain_clean.Temperature.min()
df_ss_t_low = df_stress_strain_clean[df_stress_strain_clean.Temperature == t_low]

# High temperature
t_high = df_stress_strain_clean.Temperature.max()
df_ss_t_high = df_stress_strain_clean[df_stress_strain_clean.Temperature == t_high]

x_label = rf'$\epsilon$'
y_label = rf'$\sigma$ / MPa'

fig, ax = plt.subplots()
ax.set_ylabel(y_label)
ax.set_xlabel(x_label)

ax.plot(df_ss_t_low.x, df_ss_t_low['y'] / 1e6, color='blue', label=f'T = {t_low:.2f} °C')
ax.plot(df_ss_t_high['x'], df_ss_t_high['y'] / 1e6, color='red', label=f'T = {t_high:.2f} °C')

handles, labels = ax.get_legend_handles_labels()
_ = ax.legend(handles, labels)

Next, use the functions you defined above to calculate the stress-strain curves up to the yield stress.

# Low temperature
xnew_t_low, ynew_t_low = resample_stress_strain(df_ss_t_low.x, df_ss_t_low.y / 1e6, t_low)

# High temperature
xnew_t_high, ynew_t_high = resample_stress_strain(df_ss_t_high.x, df_ss_t_high.y / 1e6, t_high)

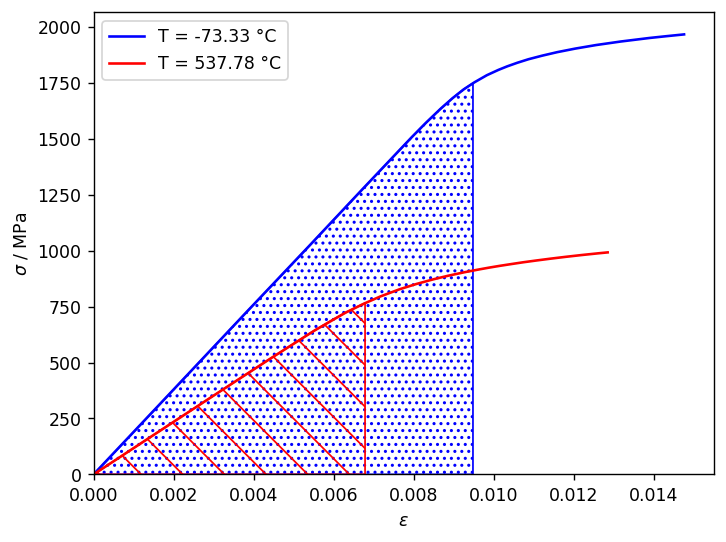

Use ax.fill_between() to fill the space between the resampled curves and the x-axis, and set the lower limit for both axes to 0. (fig forces jupyter to re-plot the existing chart.)

ax.fill_between(xnew_t_low, 0, ynew_t_low, facecolor="none", hatch="...", edgecolor="blue")
ax.fill_between(xnew_t_high, 0, ynew_t_high, facecolor="none", hatch="\\", edgecolor="red")

ax.set_xlim(left=0)
ax.set_ylim(bottom=0)

fig

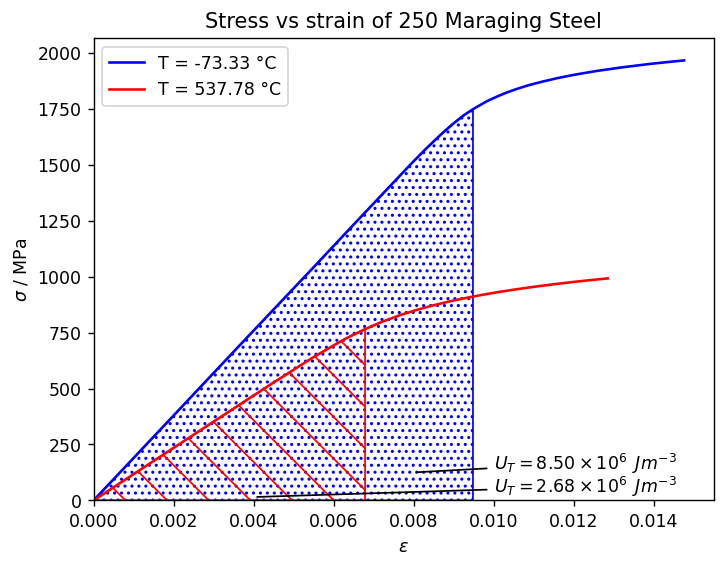

Finally, add a chart title and annotate the filled areas with the corresponding Deformation Energy.

To render the Deformation Energy value in standard form, we've defined a function which returns the mantissa and exponent, and inserted them into LaTeX-formatted strings.

energy_low = df_results.y[0]
energy_high = df_results.y.iloc[-1]

import math

def get_mantissa_and_exponent(x):
    exponent = int(math.floor(math.log10(abs(x))))
    mantissa = x / 10**exponent
    return f'{mantissa:.2f}', f'{exponent}'

arrow_props = {'facecolor': 'black', 'arrowstyle': '-'}

ax.annotate(r'$U_T = {0} \times 10^{{{1}}} \enspace Jm^{{-3}}$'.format(*get_mantissa_and_exponent(energy_low)),
            xy=(0.008, 125),
            xytext=(0.010, 140),
            arrowprops=arrow_props)

ax.annotate(r'$U_T = {0} \times 10^{{{1}}} \enspace Jm^{{-3}}$'.format(*get_mantissa_and_exponent(energy_high)),
            xy=(0.004, 15),
            xytext=(0.010, 35),
            arrowprops=arrow_props)
ax.set_title('Stress vs strain of 250 Maraging Steel')
fig
