Storing Credentials Securely

When writing Python code to be executed in a batch mode, it is important to ensure that the credentials required to connect to Granta MI (and any other server) are stored securely.

Storing an Identity in Windows Task Scheduler for Autologon

If the server running Granta MI is on the same domain as the machine running the Python script, and the script is intended to be run automatically on a schedule, Task Scheduler can be used to store the identity that will run the script. The MI Scripting Toolkit connect() function can then be used with autologon=True, and the script will connect to Granta MI using the identity specified in the Task Scheduler task.

Creating a Scheduled Task

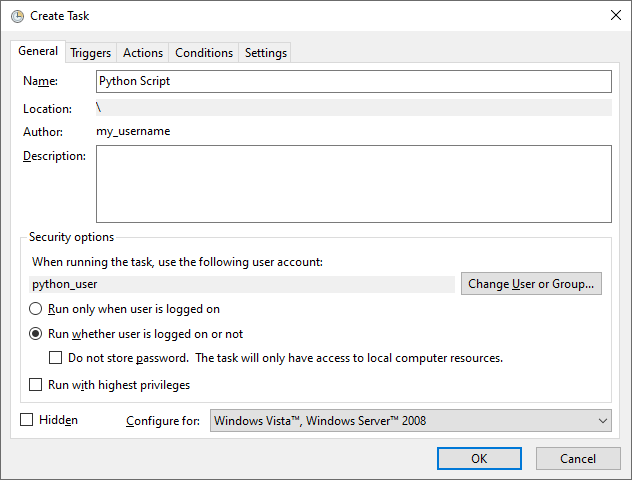

The screenshot below shows what a typical Scheduled Task will look like when configured to run as a specific user. In this case, python_user is the user that the script will run as. Clicking OK will display a password prompt to store the password for that user.

Triggers

Use the Triggers tab to configure when the script will execute. Generally this is specified in terms of certain days of the week and at a certain time of day.

Actions

Use the Actions tab to add the location of the Python executable and the script to be executed. In Windows, the Python executable is typically available either with py or python. If these are not available, you will need to specify the full path to the executable (accessible in Python by running sys.executable).

If you are executing your script in a virtual environment, we recommend writing a batch script that first activates the virtual environment before running the script. In this case, the Actions tab would reference the batch script, which in turn executes the Python script.

Considerations

• We recommend running the script as a service principal which has been granted the permission "Log On As Batch Job".
• Make sure you select the radio button Run whether user is logged on or not, since in general the service principal will not be logged in.
• Uncheck the Do not store password box, since the session will need to access a remote Granta MI server. This means that if the password changes, it will need to be re-entered in Task Scheduler.

Using keyring to Store Credentials for Password-Based Authentication

There are a number of scenarios where it does not make sense to use Task Scheduler in this way, for example:

• The script is running in Linux
• The script needs to run on-demand by a user without access to Task Scheduler
• The script needs to store credentials for a non-Windows account

In these scenarios, the keyring Python package is recommended (keyring PyPI page). It has cross-platform support by leveraging the Windows Credential Locker in Windows or the Secret Service API in Linux, which in turn relies on one of a number of different credential storage methods depending on the environment. In Ubuntu 18.04, the GNOME Password Manager is used.

Considerations

Before proceeding, be aware of the following considerations when using keyring.

• keyring itself does not store the credentials, it relies on an external back end. Environments other than Windows and Ubuntu may provide these, but their configuration can be more complex. See the keyring documentation for more details.
• In Windows, all credentials stored by a user are visible to that user. As a result, any credentials stored by a shared or service account are visible to everyone with access to that account.
• In Ubuntu, credentials are only accessible if a password was used to log in. If the user was logged in automatically, the credential store must be unlocked before it can be accessed.
• keyring has a plug-in architecture, which is used to provide alternative (and potentially unsecured) back ends. However, these require installing additional packages from PyPI and manually selecting an alternative back end.

Installing keyring

Installing keyring is typically done in the same way in both Windows and Ubuntu 18.04, despite the different credential storage back ends. The package can be installed using pip:

pip install keyring

You can confirm the back end in use by running the following on the command line:

keyring --list-backends

In Windows, this produces the following output, which indicates that the Windows Credential Locker will be used by default. If for some reason it is unavailable, keyring will fail, thus ensuring that credentials will not inadvertently be stored using an unsecured method:

keyring.backends.Windows.WinVaultKeyring (priority: 5)
keyring.backends.fail.Keyring (priority: 0)
keyring.backends.chainer.ChainerBackend (priority: -1)

Running the same command on Ubuntu 18.04 produces a similar output.

keyring.backends.SecretService.Keyring (priority: 5)
keyring.backends.chainer.ChainerBackend (priority: -1)
keyring.backends.fail.Keyring (priority: 0)

Storing Credentials Using the Command Line

The simplest way to store a credential using keyring is to use the command line.

The following command invokes the keyring Python package on the command line, and creates a new credential in the appropriate back end for the username granta-admin-user within the service my-python-script. We recommend setting the service to the name of the Python package.

keyring set my-python-script granta-admin-user

You will then be prompted for a password. Enter a password to store it securely using either Windows Credential Locker or Secret Service.

Storing Credentials Programmatically

It is sometimes useful to store credentials programmatically in Python. This is the approach used in MI Scripting Toolkit to securely persist OpenID Connect (OIDC) tokens. The cells below demonstrate how to perform the same operation as above, but in Python:

import keyring

keyring.set_password("my-python-script", "granta-admin-user", "my_secret_password")

Retrieving Credentials Programmatically

Credentials are retrieved programmatically similarly to how they are set.

keyring.get_password("my-python-script", "granta-admin-user")

Previous cell output:

'my_secret_password'

This password can now be provided to the MI Scripting Toolkit connect() method, or to any other Python function that requires a credential or other secret.

Updating Credentials

Credentials are updated by simply setting the password for the same username and service.

keyring.set_password("my-python-script", "granta-admin-user", "my_super_secret_password")

keyring.get_password("my-python-script", "granta-admin-user")

Previous cell output:

'my_super_secret_password'

Deleting Credentials

Passwords can be deleted with the delete_password function.

keyring.delete_password("my-python-script", "granta-admin-user")

Now calling get_password() will not retrieve the password, since it has been deleted.

keyring.get_password("my-python-script", "granta-admin-user")

Credentials can also be deleted using the appropriate app, either Credential Manager in Windows, or Passwords and Keys in Ubuntu. They can also be deleted using the keyring command line interface.
