Generate a Material Summary Presentation using MI Scripting Toolkit and `python-pptx`

This example shows how to use the python-pptx library to generate a Microsoft PowerPoint presentation. At a high level, the notebook goes through the following steps:

Define the data to be included in the presentation
Export the data
Load the presentation template
Add single-valued attributes to the presentation
Add functional data to the presentation
Save the presentation

1. Define the data to be included in the presentation

First, define some constants that identify the record and attributes to be included in the presentation. The following cell identifies a record by Database Key, Table name, and Record History GUID, but an alternative technique could be used to identify a record, for example searching.

DATABASE = "MI_Training"
TABLE = "Design Data"
RECORD_HISTORY_GUID = "5b1df472-a92e-4317-b9a8-e1672335bc2e"
UNIT_SYSTEM = "SI (Consistent)"

The next cells define the attributes to be included in each section of the presentation. Apart from the Presentation Title attribute, these are dictionaries which map an attribute name to a label included in the presentation.

PRESENTATION_TITLE_ATTRIBUTE = "Common Name"

DESCRIPTION_ATTRIBUTES = {
    "Common Name": "Name",
    "Thickness": "Thickness",
    "Product Form": "Form",
    "Condition": "Condition",
}

SINGLE_VALUED_PROPERTIES = {
    "Density": "Density",
    "Thermal Conductivity": "Thermal conductivity",
    "Thermal Expansion": "Thermal expansion",
    "Specific Heat": "Specific heat",
    "Modulus, L": "Tensile modulus (L-dir)",
    "Poisson's Ratio, L": "Poisson's ratio (L-dir)",
    "Yield Strength, L": "Yield strength (yield, L-dir)",
    "Ultimate Tensile Strength, L": "Ultimate tensile strength (ult., L-dir)",
    "Elongation, L": "Elongation (L-dir)",
}

The GRAPHS dictionary maps functional attributes to a 4-tuple, where each element of the tuple refers to:

The chart title
The y-axis label
The x-axis label
Optional: For multiple-series plots, a 2-tuple of the Parameter name and the title of the legend in the report

GRAPHS = {
    "Thermal Conductivity with Temp.": ("Thermal conductivity vs Temperature", "Thermal conductivity", "Temperature", None),
    "Thermal Expansion with Temp.": ("Thermal expansion vs Temperature", "Thermal expansion", "Temperature", None),
    "Specific Heat with Temp.": ("Specific heat vs Temperature", "Specific heat", "Temperature", None),
    "Tensile Stress/Strain, L": ("Stress vs Strain and Temperature", "Stress", "Strain", ("Temperature", "Temperature")),
}

2. Export the data

Export the data for all the required attributes for the 'released' version of the record.

from GRANTA_MIScriptingToolkit import granta as mpy

mi = mpy.connect("http://my.server.name/mi_servicelayer", autologon=True)
db = mi.get_db(db_key=DATABASE)
db.unit_system = UNIT_SYSTEM
table = db.get_table(TABLE)
record = db.get_record_by_id(hguid=RECORD_HISTORY_GUID)

# To get the released version of the record, iterate through all versions of the record
# and keep only the version which has the 'Released' `release_state`.
for record_version in record.all_versions.values():
    if record_version.release_state == "Released":
        released_record = record_version

# Create a list of all attributes by appending the keys of the three dictionaries defined above to
# the datasheet title attribute
all_attributes = [PRESENTATION_TITLE_ATTRIBUTE] + list(DESCRIPTION_ATTRIBUTES.keys()) + list(SINGLE_VALUED_PROPERTIES.keys()) + list(GRAPHS.keys())

table.bulk_fetch(attributes=all_attributes, records=[released_record])

3. Load the presentation template

The report template is created in Microsoft PowerPoint, and the 'python-pptx' library is used to populate the template with data exported from Granta MI.

Import the python-pptx library and create a Presentation object using the pptx.Presentation function. The function accepts an optional string as the relative path to a template file, which is used to create the Presentation object. In this example the relative path to the template file is "supporting_files/presentation_template.pptx", and the Presentation object is stored in the prs variable.

pptx.Presentation can also be called without arguments, which creates an empty Presentation instead.

from pptx import Presentation

prs = Presentation(pptx="supporting_files/11_presentation_template.pptx")

Info:

As python-pptx does not implement all the layout and style functionality in Microsoft PowerPoint, specifying a pre-defined template allows greater control over the layout of the presentation and more concise code overall.

The presentation file used above is an empty pptx file, not a potx file. The presentation file contains no slides, but does contain a PowerPoint theme, which will be used throughout this example.

4. Add single-valued attributes to the presentation

This section covers adding single-valued and range attributes to the presentation. The presentation makes use of a combination of bulleted lists and tables to present single-valued data, and each approach will be handled separately.

Create and populate a title slide

The Presentation object currently refers to an empty PowerPoint presentation. First, create a new slide based on the 'Title' slide layout, and then populate the title and sub-title content shapes.

The Presentation.slide_layouts list contains the slide layouts in the same order as they appear in the 'Slide Master' view in PowerPoint. There is no convenient way to determine the required layout programmatically, so instead get the slide layout from PowerPoint and hardcode it here. Then add a new slide based on that layout.

TITLE_LAYOUT_POSITION = 0
title_layout = prs.slide_layouts[TITLE_LAYOUT_POSITION]
title_slide = prs.slides.add_slide(title_layout)

Next, populate the values on the new slide. In PowerPoint, all content is contained within a shape. When editing a new slide, most shapes are placeholders, which means their content is undefined. Generally, adding content to a placeholder will turn it into a full shape.

To add text to a placeholder, simply use the text property.

material_name = released_record.attributes[PRESENTATION_TITLE_ATTRIBUTE].value
record_version_number = released_record.version_number

title = f"{material_name} [v{record_version_number}]"
# Since the title placeholder is so commonly used, it is available via the title property
title_slide.shapes.title.text = title

# The subtitle placeholder does not have a dedicated property. To determine the
# correct placeholder shape, iterate through each one and identify it by name.
# If the same placeholder is used multiple times, the idx value is static for
# each layout and can be used directly once identified.
subtitle = placeholder_idx = None
for shape in title_slide.placeholders:
    print('%d %s' % (shape.placeholder_format.idx, shape.name))
    if shape.name.startswith("Subtitle"):
        placeholder_idx = shape.placeholder_format.idx
        subtitle = shape
# subtitle = placeholders[placeholder_idx] would return the same placeholder shape object
subtitle.text = "Design Review"

Previous cell output:

0 Title 1
1 Subtitle 2

Modifying the Presentation object does not provide any feedback. The prs variable can be saved to disk as a pptx file at any point by using the Presentation.save method.

First, ensure the output directory exists. This directory will already exist if a notebook was run previously that saved a file to disk.

from pathlib import Path
output_folder = Path("./output")
output_folder.mkdir(exist_ok=True)

Next, save the presentation.

prs.save("output/11_presentation_title_only.pptx")

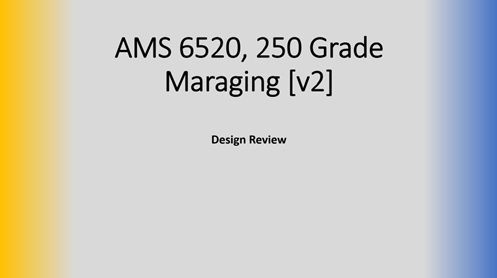

Open the presentation_title_only.pptx file to see the presentation template populated with the PRESENTATION_TITLE_ATTRIBUTE attribute value. A screenshot of the presentation title slide is shown below:

The presentation will not be saved to disk again until the report is complete. If you want to see the effects of individual operations on the presentation, use the prs.save method to save the presentation to disk.

Modify the presentation properties

PowerPoint presentations contain metadata describing the presentation content. These are exposed in the Presentation.core_properties property, and are modified below to specify values for the title, version, author, and comments.

prs.core_properties.title = f"{material_name} Design Review"
prs.core_properties.version = f"Version {record_version_number}"
prs.core_properties.author = "Granta MI"
prs.core_properties.comments = "Autogenerated by MI Scripting Toolkit and python-pptx"

Material details slide

The material description attributes will be written to a general content slide layout, with each separate attribute formatted as an entry in a bulleted list. The same high-level process will be followed as with the title slide: identify the layout, create the slide, and then populate the slide with the exported data.

First however, define a function that formats an attribute value to a suitable string format depending on the attribute type. The default format specifier :.3g uses a general format with at most 3 digits of precision.

from typing import Optional

def format_attribute(attribute: mpy.AttributeValue, format_spec: str = ".3g", include_unit: bool = False) -> Optional[str]:
    value = attribute.value
    # A null value may either be None or an empty list
    if not value and value != 0:
        return None

    # Switch based on the attribute type
    if attribute.type == "RNGE":
        formatted_value = f"{value['low']:{format_spec}} - {value['high']:{format_spec}}"
    elif attribute.type == "POIN":
        # Single-valued point only
        if isinstance(attribute.value, (float, int)):
            formatted_value = f"{value:{format_spec}}"
        else:
            raise NotImplementedError("Multi-valued point attribute not supported.")
    elif attribute.type in ["STXT", "LTXT"]:
        formatted_value = value
    else:
        raise NotImplementedError(f'Attribute type "{attribute.type}" not supported.')

    # Include the unit in the output if requested and if it exists
    if include_unit and attribute.unit:
        return f"{formatted_value} {attribute.unit}"
    else:
        return formatted_value

Next, create the content slide and populate with the exported data.

# Create a new slide based on the 'Title and content' layout
TITLE_AND_CONTENT_LAYOUT_POSITION = 1
title_and_content_layout = prs.slide_layouts[TITLE_AND_CONTENT_LAYOUT_POSITION]
material_details_slide = prs.slides.add_slide(title_and_content_layout)

# Add the slide title
material_details_slide.shapes.title.text = "Material details"

# The main placeholder on this slide is the second placeholder, so access
# directly using the idx.
content_placeholder = material_details_slide.placeholders[1]

# A content placeholder is a general placeholder that can contain any type of
# content. In this case we will add text content, so accessing the text_frame
# property converts it to a text shape.
text_frame = content_placeholder.text_frame

# Empty the text frame, so we know there is no content present
text_frame.clear()

# The first attribute will be handled slightly differently, so use this
# variable to track if we are processing the first attribute or not.
is_first_attribute = True

# The DESCRIPTION_ATTRIBUTES dictionary contains pairs of attribute names and labels.
for idx, (attribute_name, label) in enumerate(DESCRIPTION_ATTRIBUTES.items()):
    # Format the attribute value as a string with the unit included
    attribute = released_record.attributes[attribute_name]
    value = format_attribute(attribute, include_unit=True)

    # The bullet point text is the label, two tab characters, and the formatted value
    bullet_text = f"{label}:\t\t{value}"

    # An empty text frame always contains exactly one paragraph
    # For the first attribute, write the value to this paragraph
    if is_first_attribute:
        text_frame.text = bullet_text
        is_first_attribute = False
    # For subsequent attributes, add a new paragraph, which creates a new bullet point
    # Then write the value to this newly created paragraph.
    else:
        p = text_frame.add_paragraph()
        p.text = bullet_text

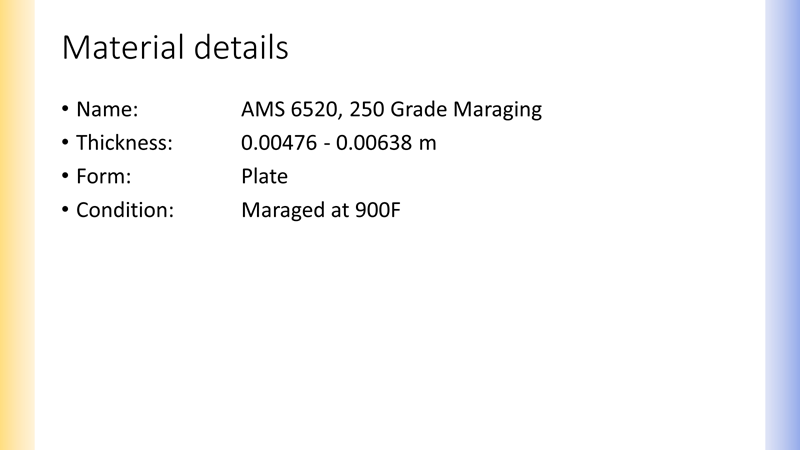

A screenshot of the generated slide is shown below.

Room temperature properties slide

Next, write the room-temperature material properties to the presentation. This step is similar to the material detail attributes above, except the data is written to a table with separate label, value, and unit columns.

First, create the new slide as before, but this time populate the table placeholder with a table containing 3 columns and a number of rows equal to the number of exported attributes. Then set the width of the columns in inches, based on some pre-computed sensible values.

from pptx.util import Mm
from pptx.enum.text import PP_ALIGN

# The presentation template contains a custom 'Room-temperature properties' layout
# This custom layout is at position 10 in PowerPoint
ROOM_TEMP_LAYOUT_POSITION = 9
room_temp_prop_layout = prs.slide_layouts[ROOM_TEMP_LAYOUT_POSITION]
room_temp_prop_slide = prs.slides.add_slide(room_temp_prop_layout)
room_temp_prop_slide.shapes.title.text = "Room-temperature properties"

table_placeholder = None
for p in room_temp_prop_slide.placeholders:
    if p.name.startswith("Table Placeholder"):
        table_placeholder = p

# Convert the table placeholder to a full table, and specify the number of
# rows and columns required.
row_count = len(SINGLE_VALUED_PROPERTIES)
graphic_frame = table_placeholder.insert_table(rows=row_count, cols=3)
property_table = graphic_frame.table

# The 'first_row' and 'first_col' properties define whether the first row and
# first column of the table are formatted distinctively, typically for header
# rows and columns. This table has no header rows or columns, so set these
# properties to False.
property_table.first_row = property_table.first_col = False

# The first column contains the property label. Set to 177.8 mm (7 in) wide
property_table.columns[0].width = Mm(177.8)
# The second and third columns contains the value and unit. Set both to 57.15 (2.25 in) wide
property_table.columns[1].width = property_table.columns[2].width = Mm(57.15)

Next, iterate through each property, format the value appropriately, and write the label, value, and unit to the table.

for (attribute_name, label), row in zip(SINGLE_VALUED_PROPERTIES.items(), property_table.rows):
    attribute = released_record.attributes[attribute_name]

    # Use standard form for numeric attributes
    value = format_attribute(attribute, format_spec=".4e", include_unit=False)
    unit = attribute.unit

    # If there is no value for this attribute, set the value and unit to a dash
    if value is None:
        value = unit = "-"
    elif unit == "":
        unit = "-"

    # Write the label to the cell in the leftmost column (column 0 or 3) with the style "Property Label"
    row.cells[0].text = label

    # Write the value to the cell in the center column (column 1 or 4) with the style "Property Value"
    value_cell = row.cells[1]
    value_cell.text = value
    value_cell.text_frame.paragraphs[0].font.name = "Consolas"
    value_cell.text_frame.paragraphs[0].alignment = PP_ALIGN.RIGHT

    # Write the unit to the cell in the rightmost column (column 2 or 5) with the style "Property Unit"
    unit_cell = row.cells[2]
    unit_cell.text = unit

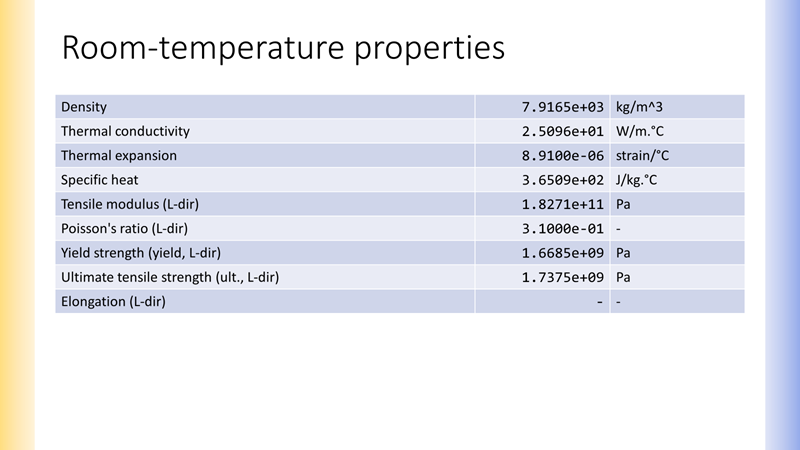

A screenshot of the generated slide is shown below.

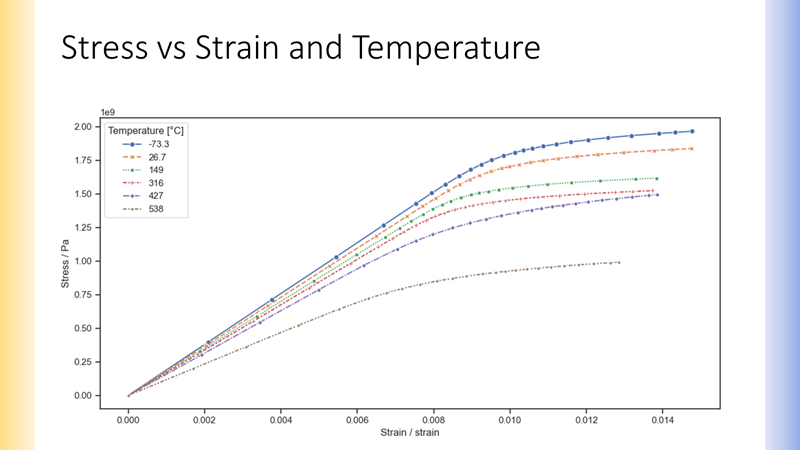

5. Add functional data to the presentation

Plot functional attributes with seaborn and matplotlib, convert the plots to image files, and then embed these in the presentation. Note: This section assumes the user is familiar with seaborn and matplotlib. For more examples and guidance in using these libraries see the previous Data Analytics examples.

First, define a helper function to convert a matplotlib plot to a png file.

import io
from matplotlib import pyplot

def convert_plot_to_png(plt: pyplot) -> io.BytesIO:
    fig = plt.get_figure()
    buffer = io.BytesIO()
    # transparent=True means the chart background is transparent, not white
    # This is useful when inserting content into a presentation
    fig.savefig(buffer, format="png", transparent=True)
    fig.clf()
    buffer.seek(0)
    return buffer

Next, import seaborn and set the plot style.

import seaborn as sns

sns.set_theme(
    rc={"figure.figsize": (13.33, 6.29)}  # The size in inches of the image placeholder in the PowerPoint template
)
sns.set_style("ticks")  # Include tickmarks on axes

Now, define a function to create a plot for a functional attribute with specified axis labels and optional constraint information.

import io

import pandas as pd

def make_graph(
    attribute: mpy.AttributeFunctional,
    y_label: str,
    x_label: str,
    constraint_param_name: Optional[str] = None,
    constraint_label: Optional[str] = None,
) -> io.BytesIO:

    value = attribute.value

    # This dictionary will be used to construct a dataframe
    data = {"y": list(), "x": list(), "constraint": list()}

    # If a constraint_param_name was provided, set a CONSTRAINT flag to True
    if constraint_param_name:
        CONSTRAINT = True
    else:
        CONSTRAINT = False

    # Get the position of the constraint parameter in the functional data value object
    if CONSTRAINT:
        param_idx = attribute.constraint_column_index[constraint_param_name]
    else:
        param_idx = None
        parameter_unit = None

    # Add the functional data to the dataframe dictionary
    for row in value[1:]:
        data["y"].append(row[0])
        data["x"].append(row[2])
        if CONSTRAINT:
            data["constraint"].append(f"{row[param_idx]:.3g}")

    if not CONSTRAINT:
        # Remove the constraint key from the dictionary before converting to a dataframe
        data.pop("constraint")

    # Create the dataframe
    df = pd.DataFrame(data)

    # The commands to create a plot are slightly different if there are multiple series
    if CONSTRAINT:
        plt = sns.lineplot(
            data=df,
            x="x",
            y="y",
            style="constraint",
            hue="constraint",
            markers=True,
        )
    else:
        plt = sns.lineplot(
            data=df,
            x="x",
            y="y",
            marker='o',
        )

    x_unit = attribute.xaxis_parameter.unit
    y_unit = attribute.unit
    plt.set(
        xlabel=f"{x_label} / {x_unit}",
        ylabel=f"{y_label} / {y_unit}",
    )

    # If we have a constraint, add a legend
    if CONSTRAINT:
        parameter_unit = attribute.parameters[constraint_param_name].unit
        legend_title = f"{constraint_label} [{parameter_unit}]"
        plt.legend(title=legend_title)

    png = convert_plot_to_png(plt)
    return png

Finally, use this function to create a plot image for each functional attribute and add it to the presentation. Each plot is added to a separate slide based on a custom slide layout designed for representing seaborn plots.

# The presentation template contains a custom 'Graph' layout
# This custom layout is at position 11 in PowerPoint
GRAPH_LAYOUT_POSITION = 10
graph_layout = prs.slide_layouts[GRAPH_LAYOUT_POSITION]

for attribute_name, (title, y_label, x_label, constraint_info) in GRAPHS.items():
    attribute = released_record.attributes[attribute_name]
    png = make_graph(
        attribute=attribute,
        y_label=y_label,
        x_label=x_label,
        # Use a ternary expression to only access the constraint_info tuple if it is not None
        constraint_param_name=constraint_info[0] if constraint_info else None,
        constraint_label=constraint_info[1] if constraint_info else None,
    )
    # Create a new slide based on the graph layout
    graph_slide = prs.slides.add_slide(graph_layout)

    # Set the title of the slide to be the graph title
    graph_slide.shapes.title.text = title
    for shape in graph_slide.placeholders:
        if shape.name.startswith("Picture Placeholder"):
            # Add the graph to the Picture Placeholder
            shape.insert_picture(png)
